micro-servocomando S-0025K servo 4,8v 6v spinetta UNI

Descrizione

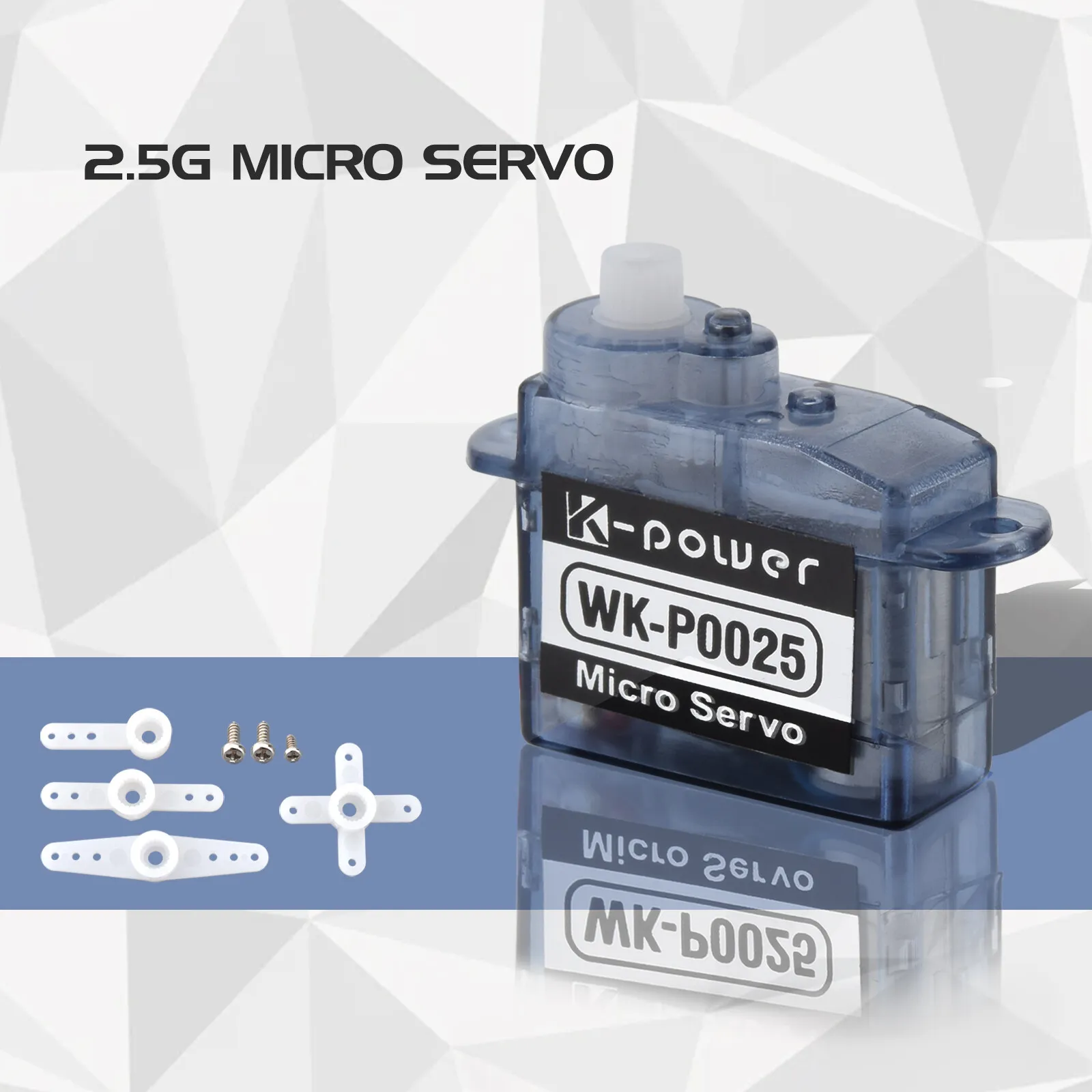

K-Power S-0025K servo 4,8v 6v
MICRO SERVOCOMANDO 2,5 Grammi
Parameter:
Model Type:Analog Servo P0025
Motor Type:Coreless
Case material:Plastic
Gear material:Plastic
Bearing Type:No bearing
Weight: 2.5g / 0.1oz(not include wires weight)
Dimension:20*8.2*16.3mm³ / 0.8*0.3*0.6in³
Operation Voltage:4.8-6V
Torque: 0.7kg-cm/4.8V; 0.8kg-cm/6.0V 10oz-in/4.8V; 11oz-in/6.0V
Speed:0.08sec/60°/4.8V; 0.07sec/60°/6.0V
Pulse Width:900-2100
Dead band width:4μs
Interface Type:JR
Operating Temperature:-10 to 60 centigrade
Splining:20T
Application: Fixed Wing Glider Airplane
